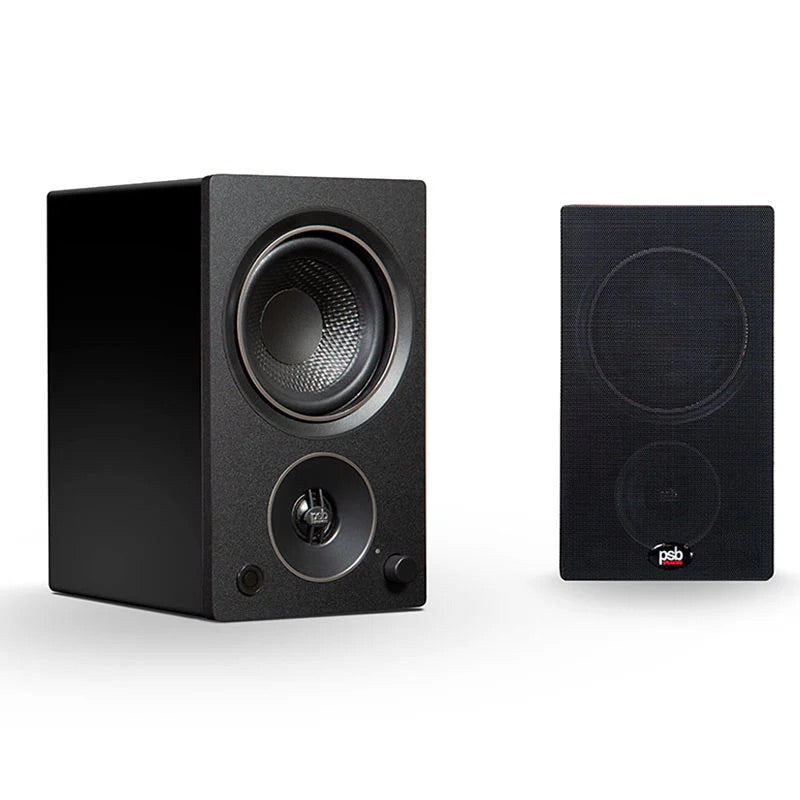

PSB Alpha AM3

Compact Powered Speakers

Get more out of your audio with legendary PSB sound.

The AM3 is a compact home music system that connects to virtually any device, wired or wirelessly, and delivers bold stereo sound for everything you enjoy, from vinyl to music streaming. Constructed with premium components and designed with decades of award-winning acoustics, the AM3 powered speakers deliver full-range sound with zero distortion thanks to their 4” midbass drivers and ¾” aluminium ferrofluid-cooled tweeters for crystal-clear highs. With a built-in phono preamp you can connect a turntable without extra components or gear, while still being able to stream music from any app or device with high-quality Qualcomm aptX Bluetooth.

Behind the Alpha Series

First designed and manufactured in a small Canadian town in 1991, the Alpha Series started with the simple idea of creating affordable speakers that were focused purely on performance. With passion and dedication in pursuit of a natural sounding speaker, and by leveraging almost 50 years of research conducted at the Canadian National Research Council, the Alphas are known as one of the world’s most iconic speakers and are still the reference benchmark for entry-level hi-fi speakers today.

Versatile design

The AM3 is simple to set up and use – simply pair and play. Whether you want to stream music from your mobile device, connect to your TV or computer, or hook them up to a turntable via the dedicated RCA phono input, the AM3’s will deliver natural, detailed sound with precision and less distortion. Packed with surprising bass, the AM3 features a special 4” woofer and is driven by a 35 watt amplifier. Looking for even deeper bass? Add a subwoofer of your choice and get ready to fill your room with even more impressive sound.

Matched components, unmatched performance

Leveraging amplification expertise from our sister brands provided the PSB design team the considerable advantage of designing a speaker for a known amplifier. Add the power of DSP and suddenly the frequency response, bass extension and total output are optimized to a remarkable level of performance. Exceptionally few powered speakers share intellectual resources of this magnitude, making the Alpha AM3 a standout in the crowd of powered speakers.

Simple and Compact

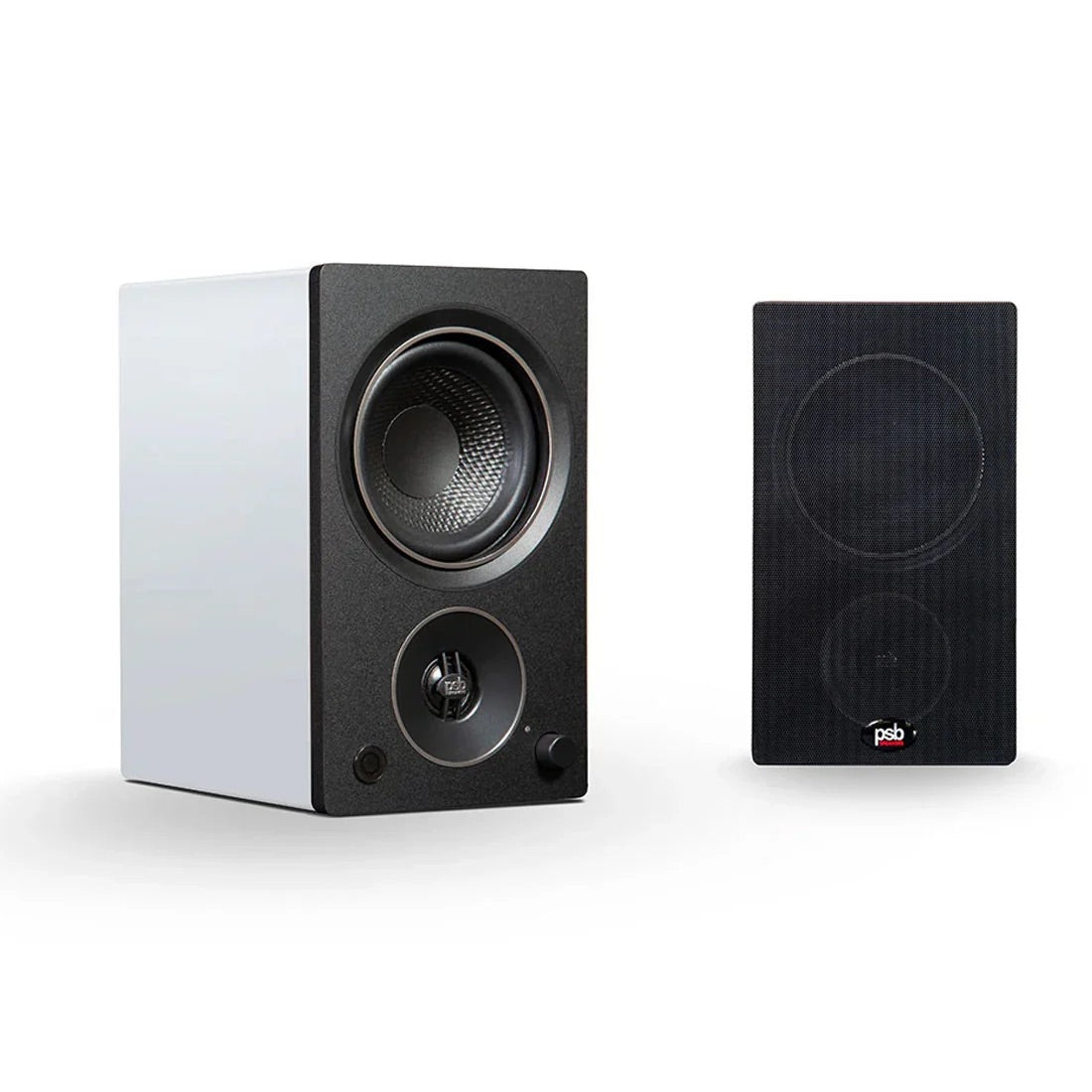

Featuring acoustically transparent detachable magnetic grilles in a choice of matte black or matte white finish, the AM3 offers a timeless design that will seamlessly blend into any décor. The compact size of the AM3 makes it the perfect system for a desk in your office, or a tabletop in your living room or bedroom.

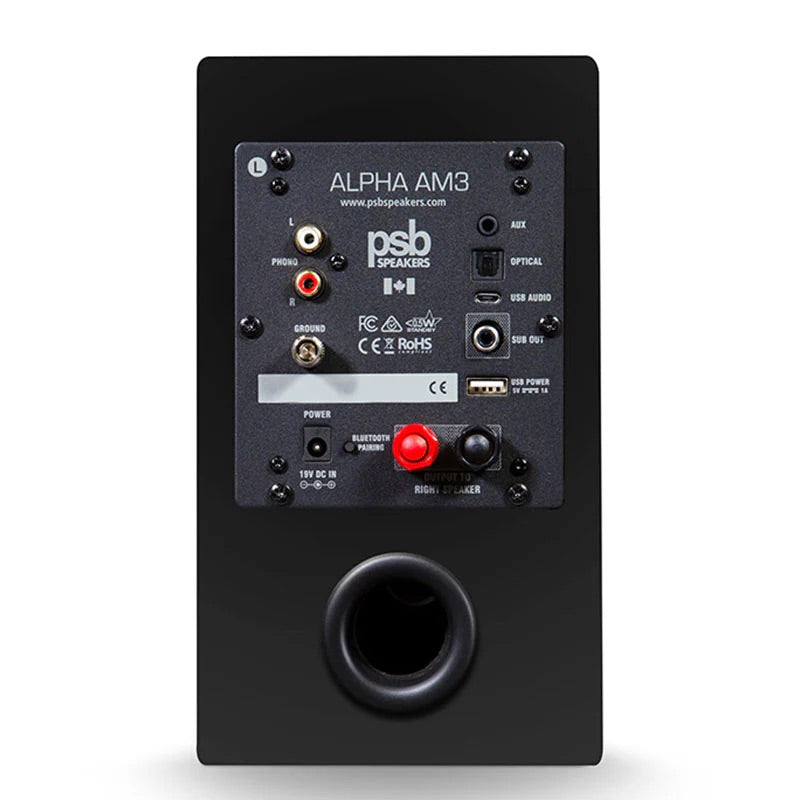

• Qualcomm® aptX™ Bluetooth
• Dedicated RCA Phono Input
• 3.5 mm Analog Input
• Optical Input
• USB DAC
• USB Power Jack
• IR Remote Control
• Subwoofer Output
• Sold as a pair

Specifications:

Frequency Response On Axis @ 0° ±3dB	56Hz - 22KHz
Frequency Response LF Cutoff -10dB	40Hz
Amplifier Power	35 watts x2 rms
Tweeter	3/4" (19mm), Aluminum Dome with Ferrofluid Neodymium Magnet
Woofer	4" (100mm) Cone,Rubber Surround, Steel Basket
Analog	3.5mm, Phono MM
Digital	Optical, USB
Wireless	aptX™ Bluetooth
Design Type	Bass Reflex
Cabinet	MDF
Cabinet Sleeve	Vinyl
Baffle Front	MDF
Grille	Perforated Metal

Dimensions and weight
Net Dimensions	130 x220 x174mm
Net Weight (pair)	4.5kg
Shipping Dimensions	359 x251 x292mm
Shipping weight (pair)	5.3kg
